3v 1.5w White 3030 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 210-220LM/W

Basisinformatie

Plaats van herkomst:	China
Merknaam:	TYF
Certificering:	LM-80 Rohs
Modelnummer:	TS1-E30FL-0202BB

Min. bestelaantal:	20000
Prijs:	0.034-0.04
Betalingscondities:	t/t

Beste prijs Contact nu

Gedetailleerde informatie

Markeren:

3v 3030 SMD LED chip

high power 3030 LED

CRI90 3030 LED chip

Productomschrijving

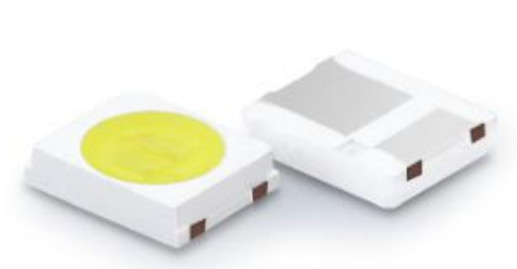

3V 1.5W White 3030 SMD LED Chip High Power 3000K-4000K CRI70/80/90 210-220LM/W

Key Features

EMC package
Package Dimension: 3.0mm × 3.0mm × 0.60mm
Viewing Angle: 120°
ROHS Approved

Product Description

The TYF 3030 package offers high efficacy, high Ra, low power consumption, wide viewing angle and a compact form factor. These features make the package an ideal LED for lighting applications.

Applications

Outdoor general lighting Industrial lighting Professional downlights Retrofits and fixtures

Technical Specifications

Limiting Power: 1.5 W

Forward Current: IF ≦250 mA

Operating Temperature: -40℃ to +85℃

Junction Temperature: 125℃

Thermal Resistance: 15℃/W

Storage Temperature: -40℃ to +105℃

ESD Sensitivity: ESD 2,000V HBM

Reverse Voltage: Reverse testing is not allowed

Reverse Current: VR=5V 1uA

Soldering Temperature: 260℃/3-5sec

Moisture Sensitivity: MSL3 ℃/RH/H
